Modern plants must tighten screws in seconds, not minutes. Phones, toys, appliances, and small tools all race down fast lines. Two simple tools help keep that pace: screw feeders and air motors. When paired, they give steady flow, high torque, and low cost per unit.
What Makes a Line High-Speed?
A line moves from station to station with few pauses. Parts arrive just in time, fixtures guide them into place, and torque tools must hit spec on the first try. Three facts define high speed:
- Cycle time often sits below three seconds per screw.
- Operators handle hundreds or thousands of screws in a single shift.
- Any delay stacks up and forces overtime or rework.
In this world, hand picks or slow electric drivers stall flow. Plants need tools that load fast, drive true, and stand up to long duty hours.
Screw Feeders: Fast and Repeatable
A screw feeder sorts bulk screws, sets them nose-first in a rail, and shoots each one to the driver bit. That action cuts wasted motion.
Main wins:
- No hand reach for each screw
Operators stay on the part, not the bin. A vacuum or blow tube shoots the screw straight to the bit. - Same screw every time
Guide rails weed out short, bent, or wrong-head screws. The unit stops and alarms if parts jam, so bad screws never hit the product. - Stable cycle time
A feeder spits out a screw in under half a second. A human hand may vary by one or two seconds. That gap sounds small but grows huge over an eight-hour shift. - Less drop risk
No loose screws roll on the floor. Clean floors cut slip risk and save clean-up time.
Key points to check when you pick a feeder:
- Screw length and head style.
- Bit reach needed in the joint.
- Feed method: blow tube or pick-and-place.
- Hardened rails for long life.
Air Motors: Steady Power without Heat

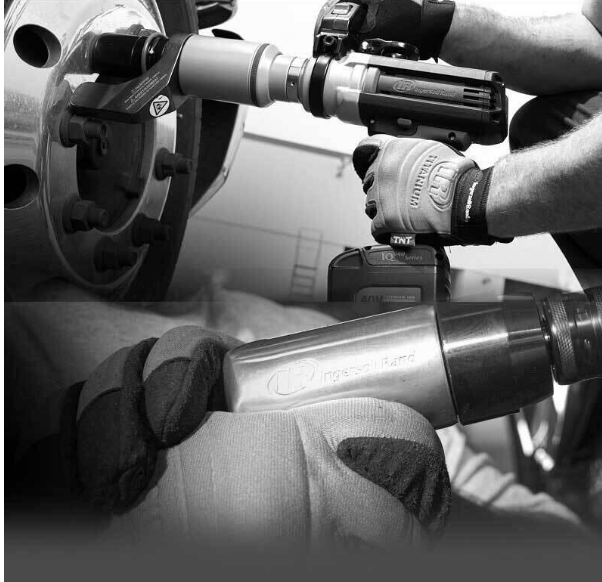

Air motors convert compressed air into rotation. They fit well on drivers that run all day.
Why they shine on fast lines:
- High power-to-weight ratio
An air driver stays light yet hits high torque. Operators feel less fatigue. - Cool operation
Air exhaust cools the tool body, so heat never builds up. Electric motors often need rest or fans. - Simple speed control
Regulate inlet pressure to raise or lower RPM. A quick twist of a knob is enough. - Long life with little care
No brushes or windings. Lube in the airline keeps gears fresh. Many air tools run for years before rebuild. - Safe in harsh zones
Sparks stay low, and air motors shrug off debris. Electronic parts can fail when fine dust sneaks in.
Pairing Feeders with Air Motors
A feeder shoots a screw to the bit. An air driver spins it into place. Together they create a smooth loop:
Driver signals “need screw” as soon as it clears the last joint.
Feeder sends the screw in a blow tube.
Bit holds the screw with vacuum or a tiny magnet.
Operator lands the bit on the joint; clutch trips at target torque.
Tool lifts; the cycle restarts.
That loop needs no pause. The operator’s arm moves in one arc. Many plants see a 30 percent jump in units per hour after the switch from hand pick and corded electric tools.
Gains by Sector
Electronics
Phones and tablets use small M1 to M3 screws. Fingers struggle to hold these parts. A micro screw feeder plus a compact air driver reduce cross-thread risk and speed repair lines too.
Appliance
Dishwashers and ovens have mixed screw sizes. Multi-bit air tools, each fed by its own rail, let one operator cover a door or panel without tool swaps.
Medical device
Clean rooms need low particulate. Air motors exhaust through mufflers and stainless casings. Screw feeders keep small screws off the floor, which helps meet ISO class limits.
Automotive
Seat tracks and sensor mounts run at high torque. Pulse air drivers cut reaction force. A tough feeder with coated rails stands up to zinc-flake screws.
Small shop example
A Midwest contract plant built four drone models. Each frame held twelve self-tapping screws. Hand pick took six seconds per joint and pushed daily output to 400 units. After a feeder and air driver upgrade:
- Joint time fell to two seconds.
- Output rose to 1,000 units.
- Scrap due to cross-thread dropped by 70 percent.
- Operator stress complaints fell off the safety log.
Cost math often looks the same. Payback on the kit can land in three to nine months just on time saved.
Common Myths
- Air tools need huge compressors.
A driver uses about 0.3 to 0.5 cubic meters per minute. Most plants already have spare air. A small shop can add a 5 HP unit. - Feeders jam too much.
A well-matched rail and screw combo jams less than one in ten thousand cycles. Regular clean air blasts and a quick rail wipe keep flow clear. - Torque control is poor on air.
Modern clutch or pulse drivers hit ±3 percent repeatability, which meets most spec sheets. For tighter limits, add a torque tester in the cell.
Why Choose Flexible Assembly Systems?
Tool pick matters, but the right partner matters more. Flexible Assembly Systems ships, installs, and supports feeders and air drivers for plants of all sizes.
Here is what buyers get:
- Wide brand line
We stock and service major names like Nitto, Delta Regis, and Hios. One catalog covers all ranges from micro to heavy duty. - Fit help at no charge
Send a screw sample and joint spec. Our lab tests feed speed, clutch trip, and bit reach. You receive data, not guesses. - Local stock and quick build
Most feeders ship in two weeks or less. Custom rails or screw presenters stay in our US shop, so spare parts are never far. - Training on site or remote
Techs walk operators through set-up, PM tasks, and basic fault fixes. Short videos stay on a private portal for later review. - Service plans that grow with you
Drop-in calibration, rebuild kits, or full swap-out pools. Pick what suits budget and lead time. - Honest advice
If a simple magnetized bit will do, we say so. No push for gear you do not need.
These points keep lines running and free your staff for value work instead of tool care.
Ready to Move Faster?
See where a screw feeder and air driver can save seconds on your line. Post your joint count and target cycle time below or reach out for a quick test quote. We enjoy real shop talk and would love to hear your story.
